Paste focused supplier
Paste and backfill pipe is our sole focus. Every product we carry belongs in a paste line.
The next generation of paste pipe
Steel Reinforced Composite Pipe
Steel wire reinforced composite pipe for mines running paste backfill and reticulation systems — the pressure capability of steel with the weight, flexibility and corrosion resistance of polyethylene.
- Lightweight
- High Pressure
- Mine-ready
71%
Lighter than schedule 80 steel
3–13 MPa
Pressure classes
3×
Safety factor
4 weeks
Lead time ex works
About OctoPipe
OctoPipe is a paste focused pipe supplier
OctoPipe supplies steel wire reinforced composite pipe (SRCP) to mines running paste backfill and reticulation systems.
SRCP brings together the best of both established pipe materials: the pressure capability of steel and the light weight, flexibility and corrosion resistance of polyethylene. The result is a reticulation pipe that installs faster, handles more safely, lasts longer — and couples directly onto the steel systems mines already run. Proven in service at major underground operations internationally, SRCP gives paste plants a genuine step forward in how reticulation is built and maintained.
OctoPipe makes that step simple.
Genuine high pressure SRCP is produced by only a small number of manufacturers worldwide; we bring it within reach through direct OEM relationships, and back every shipment with independent quality assurance carried out by our own people at the point of manufacture.
Direct manufacturer relationships
OEM-direct access to a product that is otherwise difficult to source, at manufacturer pricing.
Independent quality assurance
Our own QA team inspects at the plant — dimensions, pressure and burst testing, packing and loading. Every shipment ships with a QA report.
Distribution and freight
We handle distribution and freight from factory to port. Our team will ensure your shipments are on time and delivered per your order.
Why SRCP?
The next generation of paste pipe
Direct compatibility with existing steel
Conversion can be staged level by level as development advances.
Galvanised steel end caps are machined to suit schedule SCH80 steel pipe and cut grooved to Victaulic ES / Shurjoint EP specifications.
Improved safety
Around 70% lighter than steel for safer handling.
Faster installation
Lightweight pipe and grooved couplings accelerate assembly.
Efficient transport
Move more pipe per lift with less equipment.
Simpler routing
Flexes with mine drives and ground movement.
Reduced pressure loss
Resists scale buildup, with higher abrasion resistance.
No corrosion
Built to withstand wet and acidic conditions.
OctoPipe product range

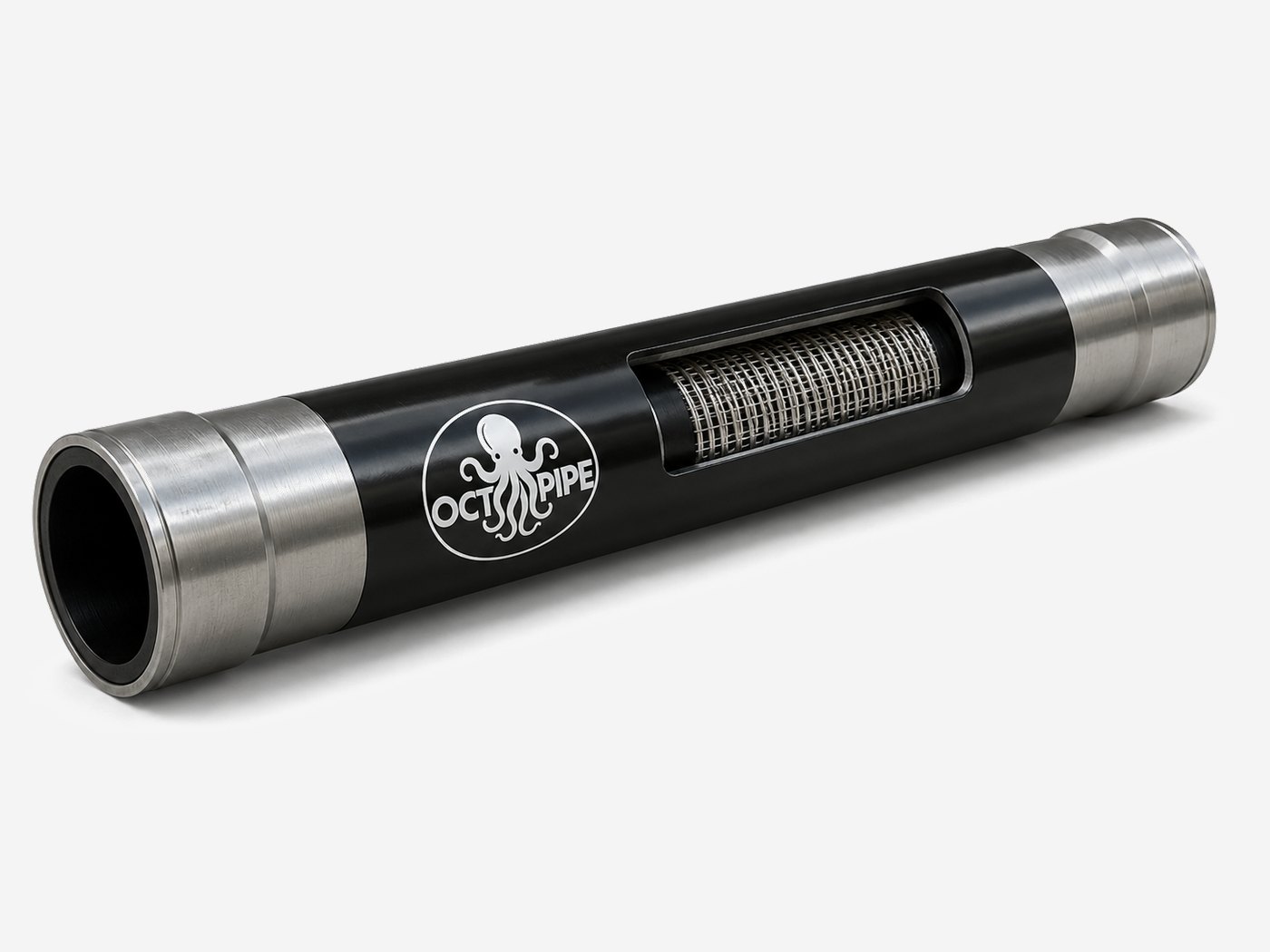

Steel reinforced composite pipe
Supplied in DN150 and DN200, pressure classes 3 to 13 MPa, with cut-grooved galvanised steel end caps compatible with Victaulic ES and Shurjoint EP high-pressure couplings. Grooved both ends as standard.

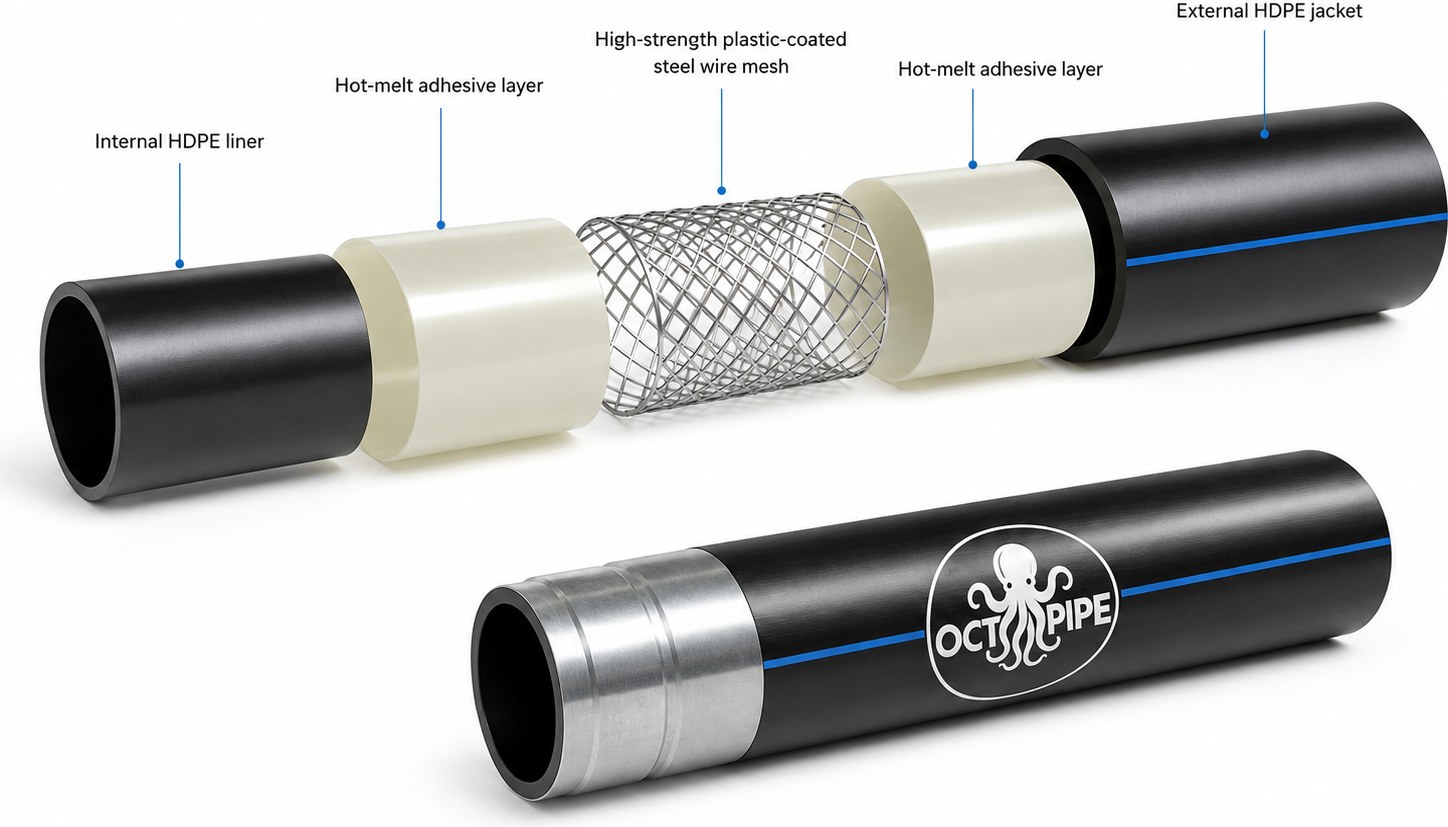

Internal HDPE liner
Smooth inner surface for low friction flow performance and corrosion resistance.
Hot melt adhesive layer
Bonds liner to reinforcement layer.
High strength steel wire mesh
Provides superior strength and pressure resistance.
External HDPE jacket
Protects against impact, abrasion and environmental factors.
Range summary — available combinations
| Nominal size | Pressure classes | Standard lengths | End options |
|---|---|---|---|
| DN200 / 8″ | 3, 7, 10, 12 MPa | 1.5 m · 3 m · 4 m · 5.8 m | Cut-grooved, flanged, custom |
| DN150 / 6″ | 3, 7, 10, 12 MPa | 1.5 m · 3 m · 4 m · 5.8 m | Cut-grooved, flanged, custom |
DN200 × 5.8 m: SRCP 7 MPa 107.2 kg · Schedule 80 steel 375 kg · SRCP 71% lighter
OctoPipe product range
OctoPipe system
OctoPipe supplies the pipe, the suspension and the on-site handling system.

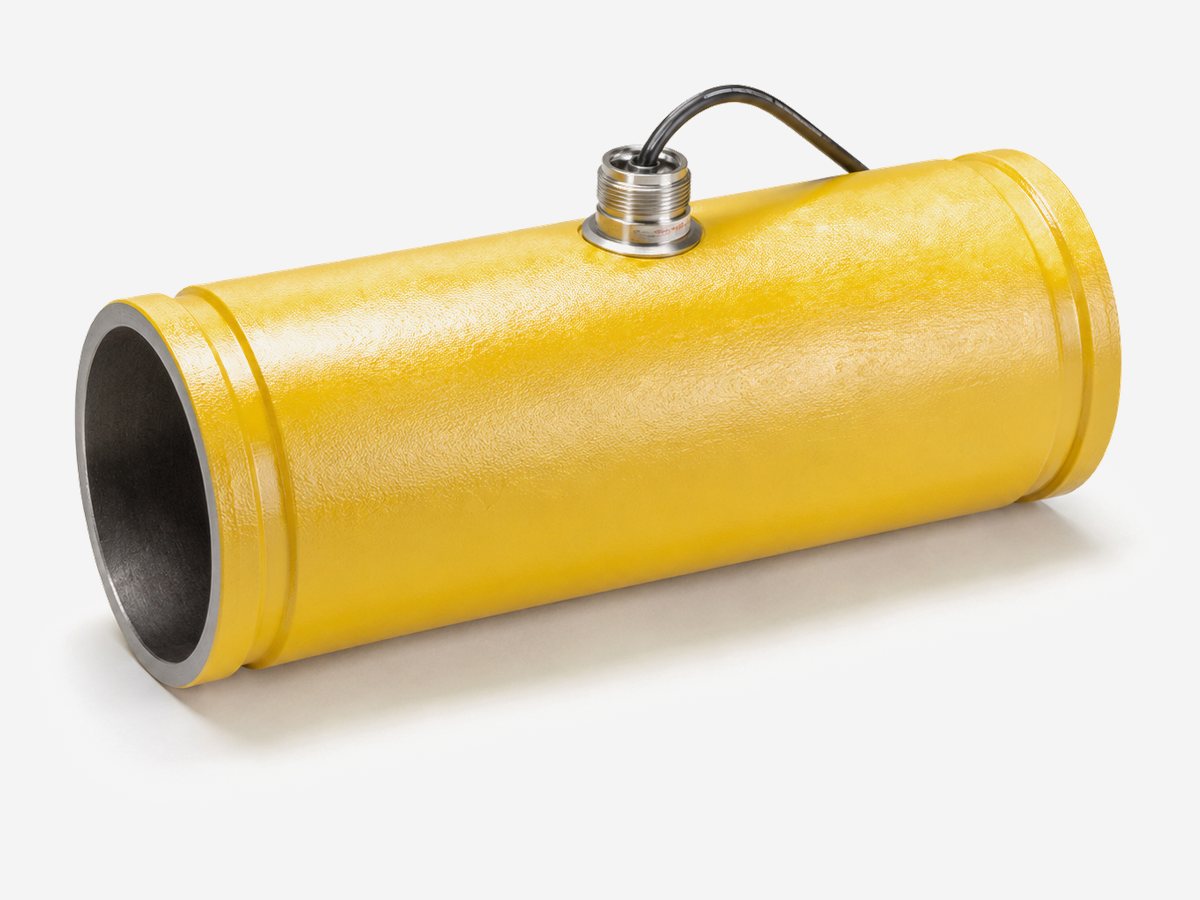

Monitoring spool
SmartPipe
- Body
- Schedule 80 A106B, DN150 & DN200
- Transmitter
- Flush-mounted 10 MPa
- System
- Maestro digital mine paste monitoring

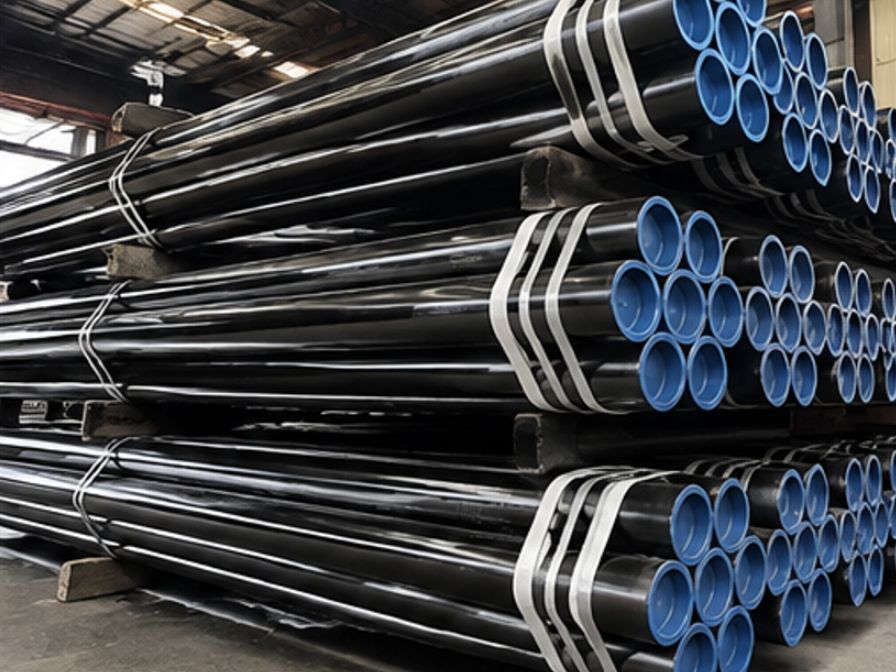

Steel pipe
A106B Schedule 80
- Sizes
- DN150 (168.3 mm OD) & DN200 (219.1 mm OD)
- Ends
- Cut-grooved, flanged, custom
- Lengths
- 1 m, 3 m and 6 m

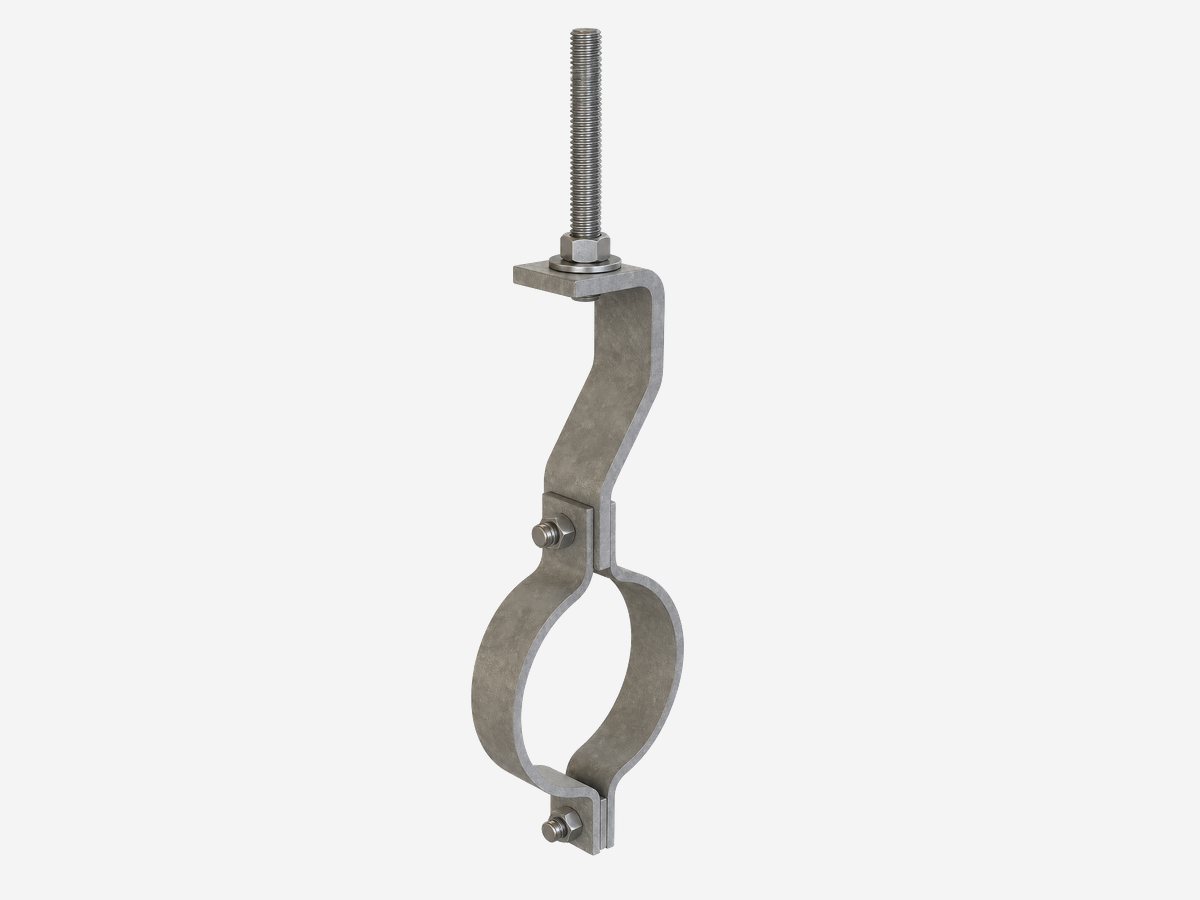

Pipe suspension system
OctoBracket
- Size
- DN150 / DN200
- Working load limit
- 500 kg
- Construction
- No-weld, galvanised finish

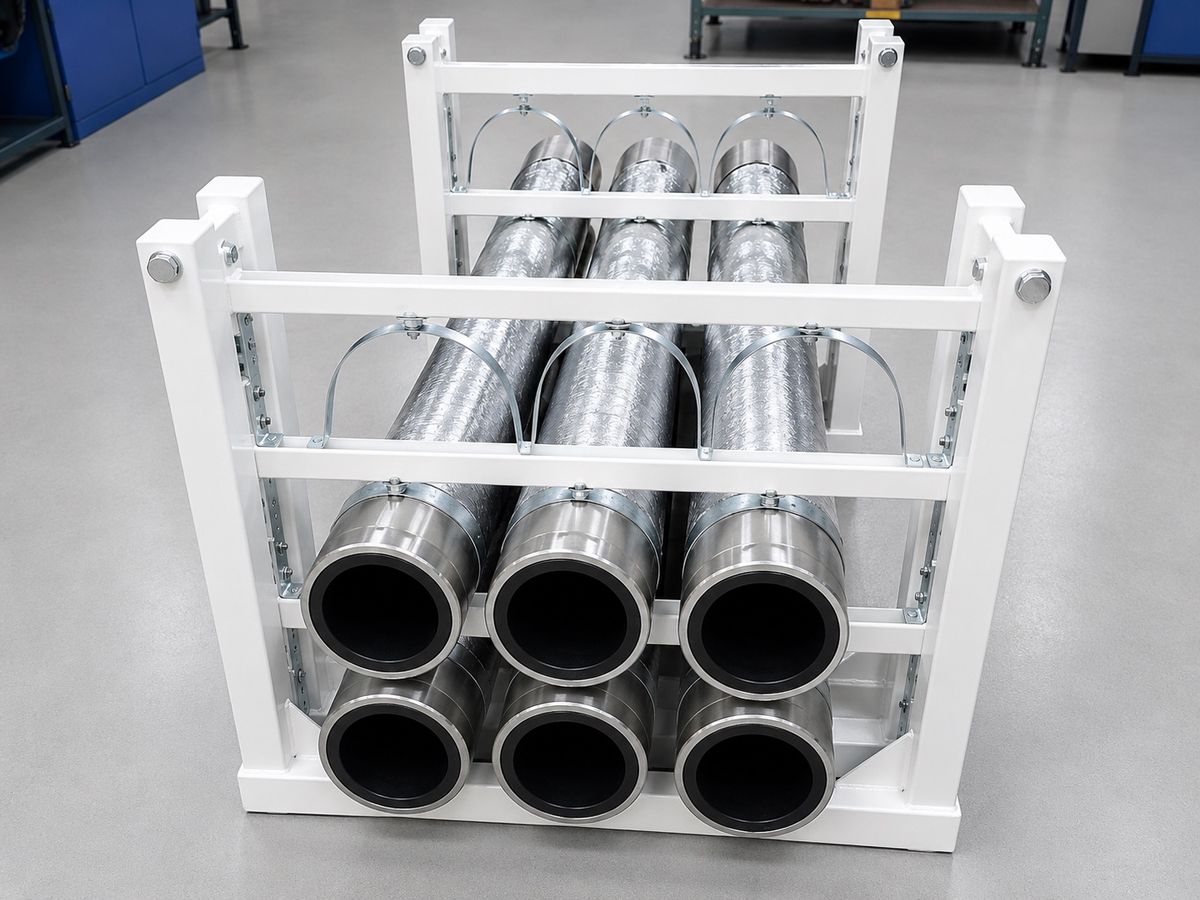

SRCP and steel transport system
Packsafe
- Lifting
- Dual-direction, WLL 1 t per bracket
- Removal
- Layered removal system
- Transport
- Safe transport for pipe underground
Inspected at the point of manufacture
Quality assurance
Pipe manufactured overseas is normally released on the manufacturer's own inspection. OctoPipe applies an independent layer: our QA team inspects at the point of manufacture, verifies pressure ratings by test, and supervises packing and loading before shipment. A QA report is supplied with every shipment.

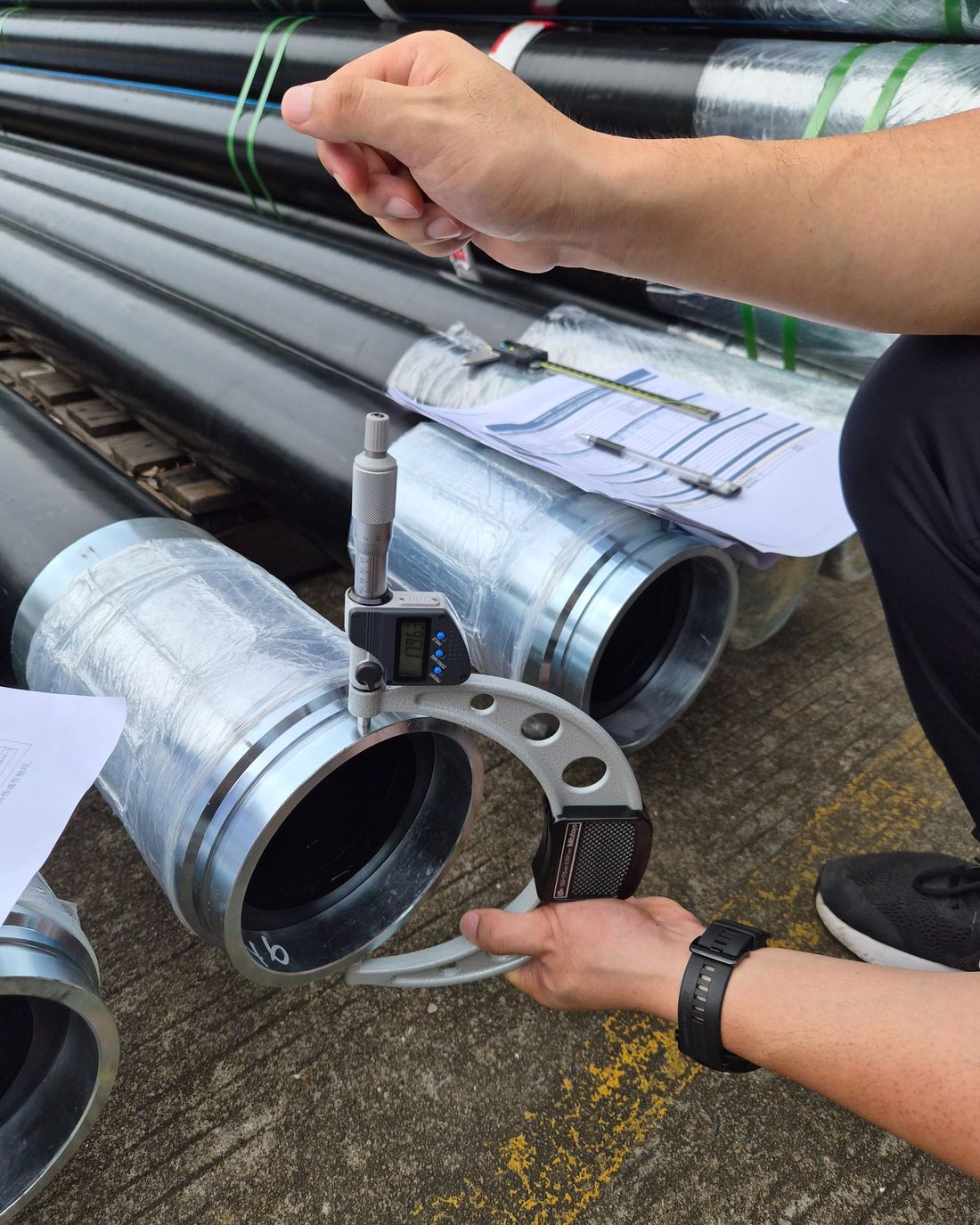

Dimensional inspection
One pipe in every twenty measured with calibrated instruments against a controlled drawing. A single non-conformance triggers further QA inspections.
Pressure and burst testing
Hydrostatic and burst testing is carried out at the manufacturing plant for each batch order, witnessed by OctoPipe personnel, confirming performance against the rated working pressure.
Marking and release
Full part number on every pipe; QC stickers on batch checked pipes, signed and dated by the inspector.
Loading supervision
Reconciled against the packing list. Fabric slings, capped ends, strapped bundles for safe and easy unloading.
Standards ISO 4427 · GB/T 32439 · CJ/T 189 · CJ/T 445 · CJ/T 537-2019
3× SAFETY FACTOR
QA REPORT PER SHIPMENT
Factory to minesite
Supply and logistics
Lead time
4 weeksex works
Delivery terms
CIFWorldwide
Packing
- Slung bundles in open-top containers
- Ends capped and wrapped
Distribution points
- Tanzania (Buzwagi)
- Botswana (Gaborone)
- South Africa (Johannesburg)
- Direct to minesite
Documentation
QA report with every shipment
Contact
Talk to us about your paste line
Tell us the size, pressure class and length you need and we will come back with pricing, lead time and delivery terms.
Sales enquiries
sales@octo-pipe.comExclusive distribution in Africa
Dwyka Mining Services
Jamie van Schoor
